SPECIFICATIONS

Age Range: 14 Years & up

Application: Robot

Brand: Feetech

Bus Interface: TTL Level Multi Drop

Camera Mount Type: Fixed Camera Mount

Car Types: Drift Cars

Color: Black

Control Channels: 2 Channels

Controller Battery: Battery

Dimensions: 40.5*24.7*35

Features: App-Controlled

Feedback: Load, Position,Speed, Input Voltage,Current,Temperature

Function: Rotation

Indoor/Outdoor Use: Indoor-Outdoor

Material: Plastic,All Metal

Model Number: HL-3625-C001 feetech constant force servo

Operator Skill Level: Expert

Package Includes: Original Box

Place of Origin: Guangdong, China

Power Source: Electric

Product name: Robot servo

Remote Distance: 100

Scale: 1:4

State of Assembly: Ready-to-Go

Torque: 25kg

Video Capture Resolution: 1080p FHD

Product Description

Product Name	feetech servo Raspberry Pi Open Source Programming AI Vision 5DOF Axis Robotics Smart Car Kits Educational Building Robot servo
Material	Metal
Application	Robot
Control Protocol	Half Duplex Asynchronous Serial CommunicationGif pack

Constant force output：Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the
servo can maintain this torque)

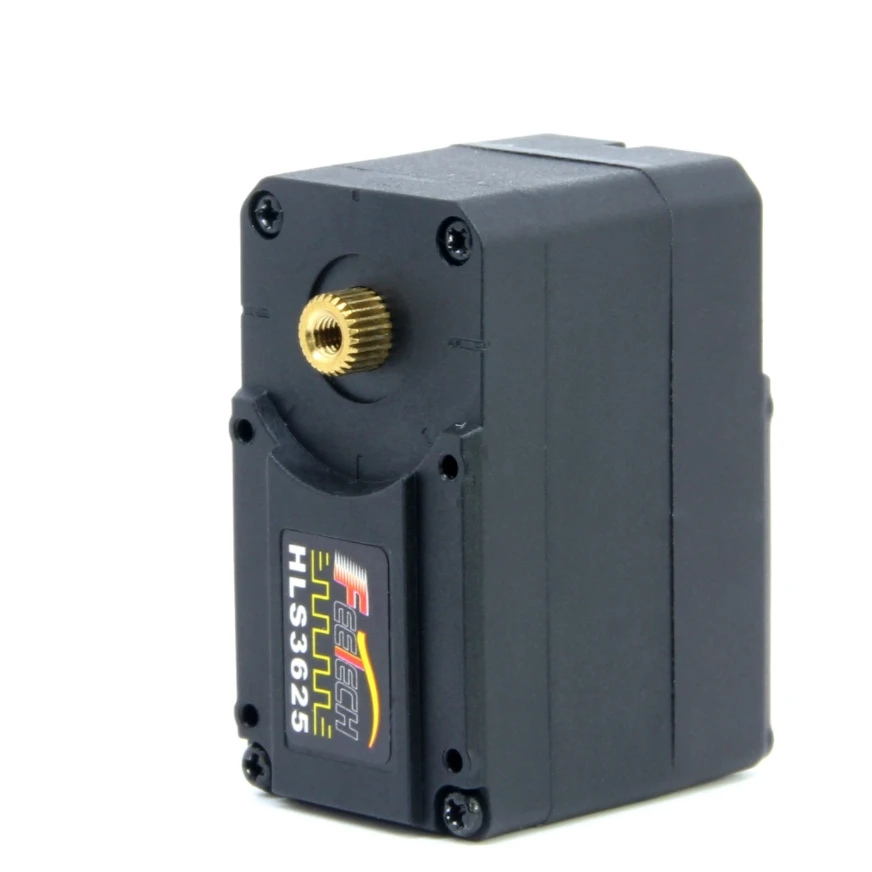

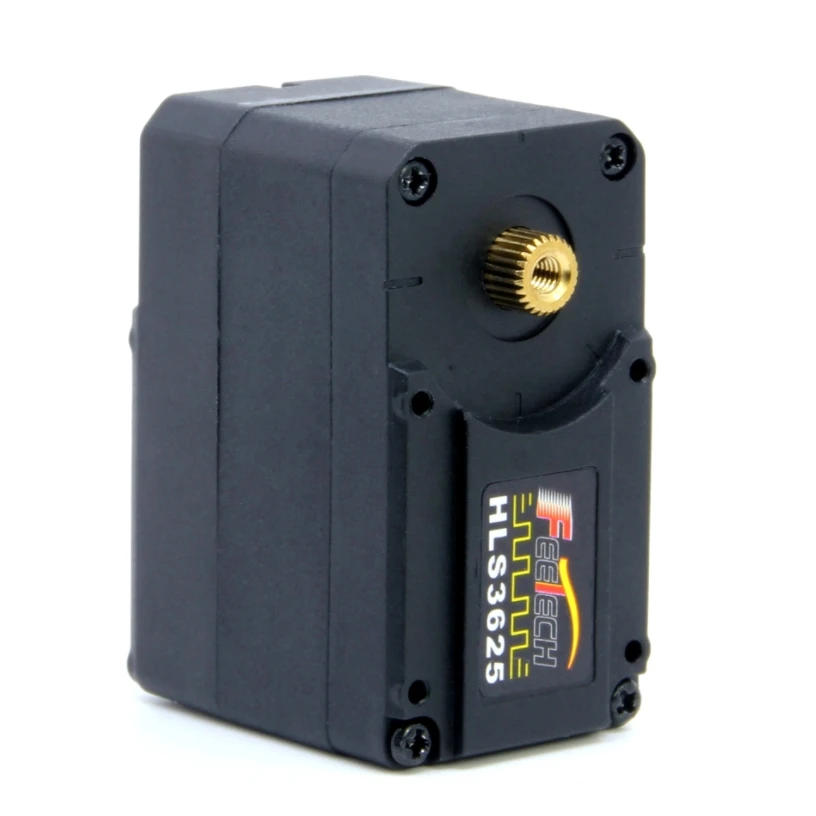

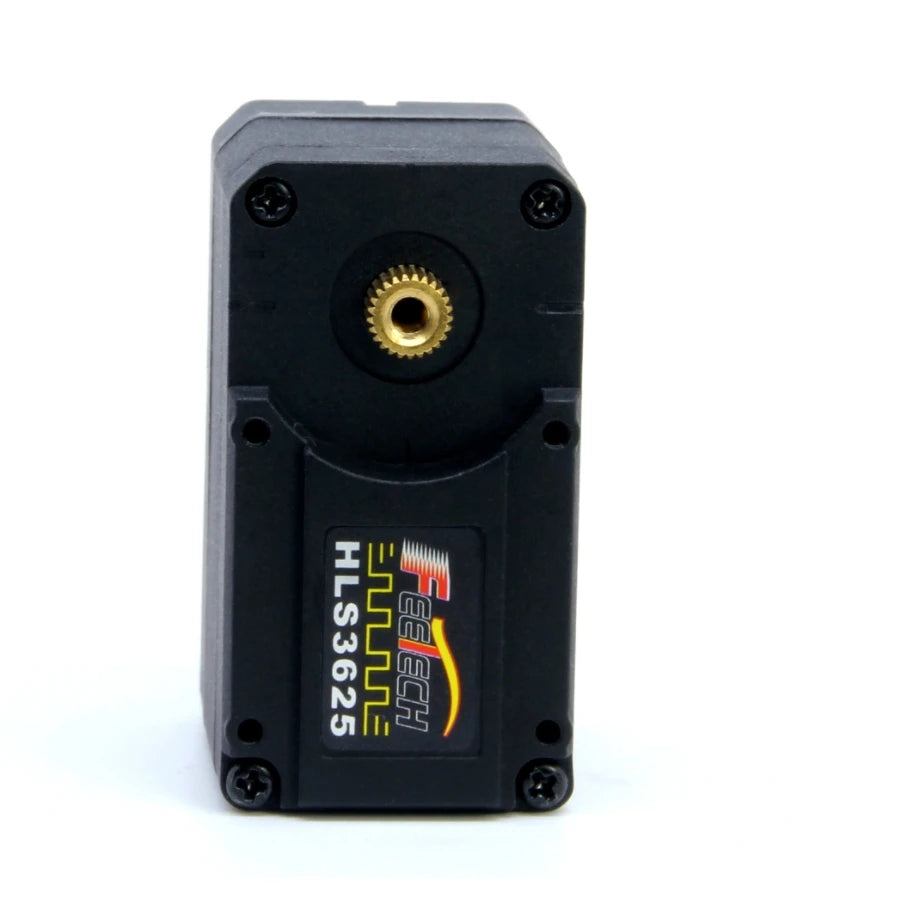

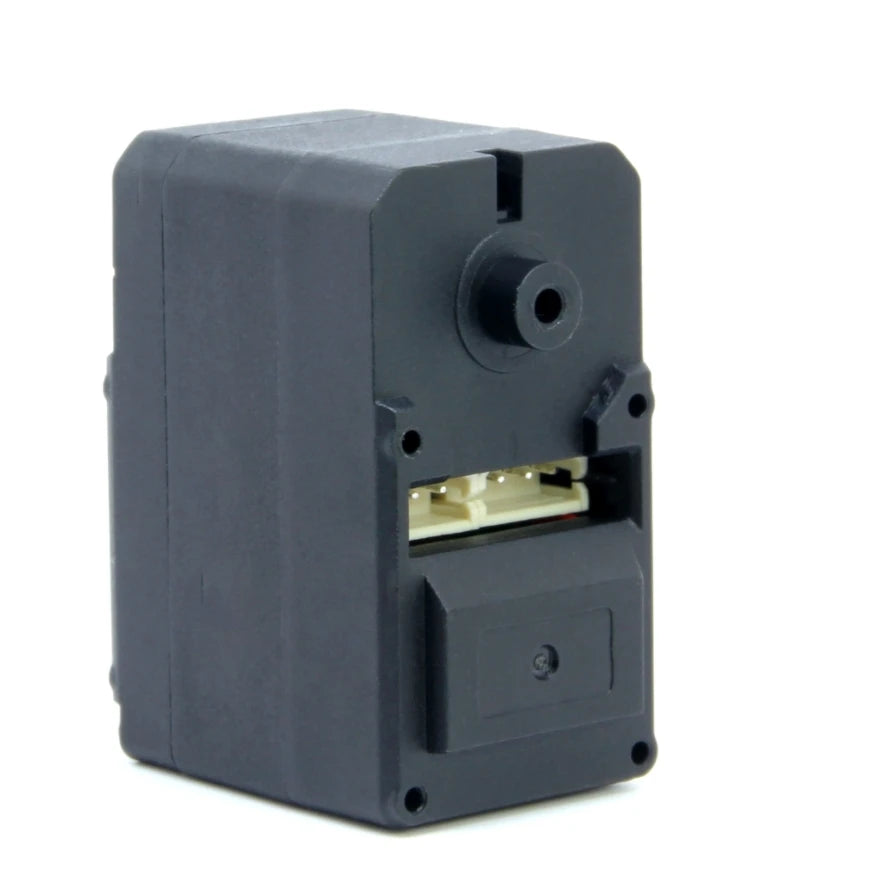

Model：HL-3625M

Product Name:
7.4V 25kg.cm Double Shaft Constant Force Serial Bus Servo
Storage Temperature Range -30℃～80℃

Operating Temperature Range:-10℃～60℃

Temperature Range:25℃ ±5℃

Humidity Range: 65%±10%

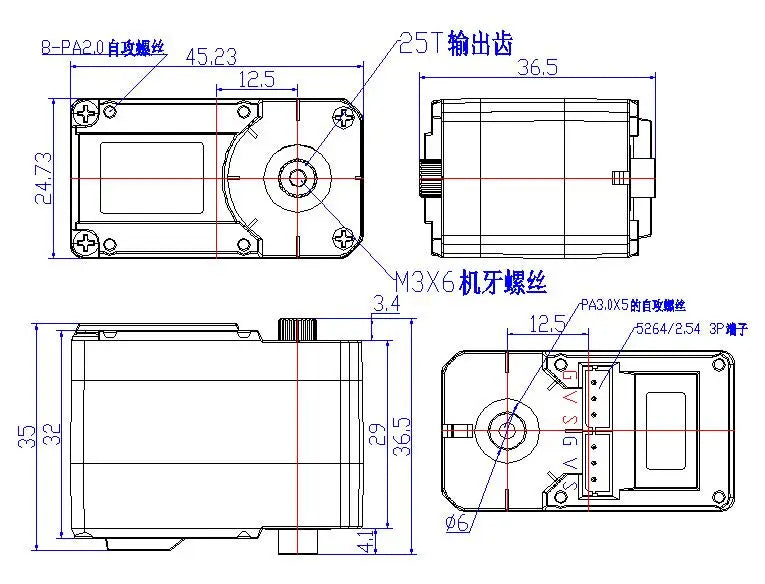

Size: A：45.2mm B：24.7mm C：35mm
Weight: 55± 1g
Gear type:Copper

Limit angle:No limit

Bearing: Ball bearings

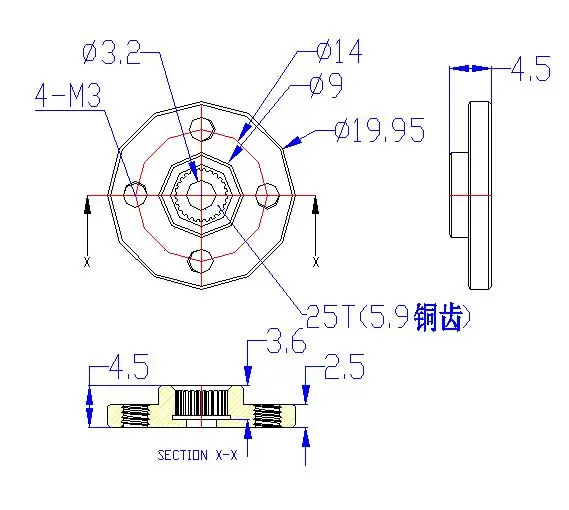

Horn gear spline:25T/OD5.9mm

Gear Ratio：1/345

The rocker phantom：0°

Case:PA66+GF
Connector wire:15CM

Motor:Core Motor

Rated Input Voltage：5V-8.4V
No load speed: 0.192sec/60°(52RPM)@7.4V
Runnig current(at no load) :180mA@7.4V

Peak stall torque: 25kg.cm@7.4V
Stall current:3.0A@7.4V

Rated Load：6.2kg. cm@7.4V

Rated current：750mA@7.4V

KT8.3kg. cm/A

Terminal resistance：2.5 Ω
Operating Modes：0：
Mode 0: Angle servo mode (default mode, absolute position controllable from 0-360 degrees)
Mode 1: Motor constant speed mode (motor constant speed mode, maintains speed without deceleration as the load increases)
Mode 2: Motor constant current mode (motor constant current mode,maintains current without decreasing with increasing load) can achieve absolute position

Multi-Loop Mode：
control of positive and negative 7 turns at the highest accuracy, but the umber of power failure turns is not saved (the
resolution can be expanded, and the number of turns can be doubled)

Constant force output：
Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the servo can maintain this torque)

Command signal:Digital Packet

Protocol Type:Half Duplex Asynchronous Serial Communication
ID range:0-253

Communication Speed:38400bps ~ 1 Mbps

Control Algorithm：PID中位 Neutral Position：180°（2048）

Running degree: 360° (when 0~4096)
Resolution [deg/pulse]0.088°(360°/4096)

Rotating Direction：Clockwise(0→4096）

Feedback: Load, Position,Speed, Input Voltage，Current,Temperature

Details Images

Related Products

Packing&Shipping

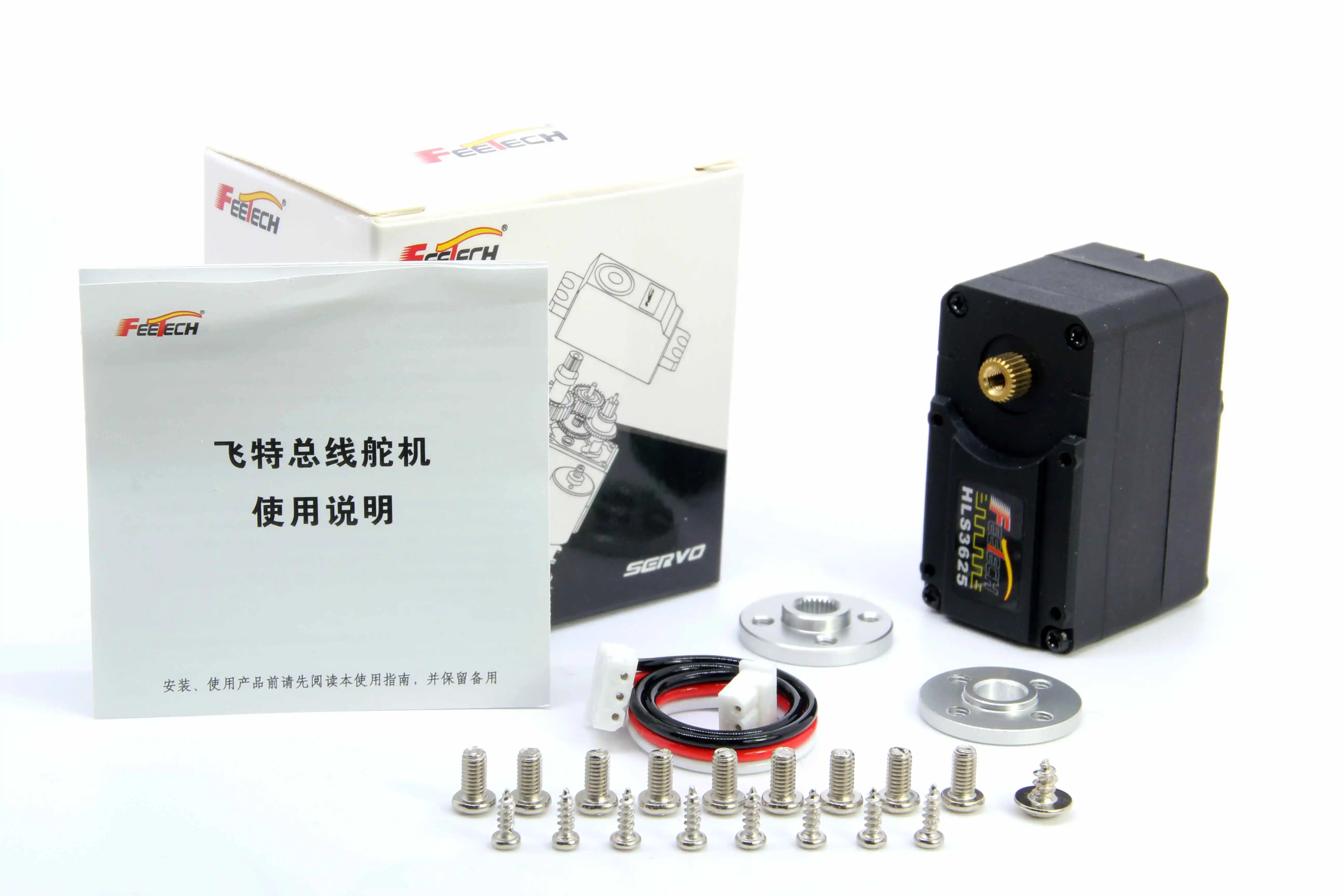

Packing:
-Servo×1PCS
-Servo arm with Screw setX1bag
-1pcs Servo Cable

Company Introduction

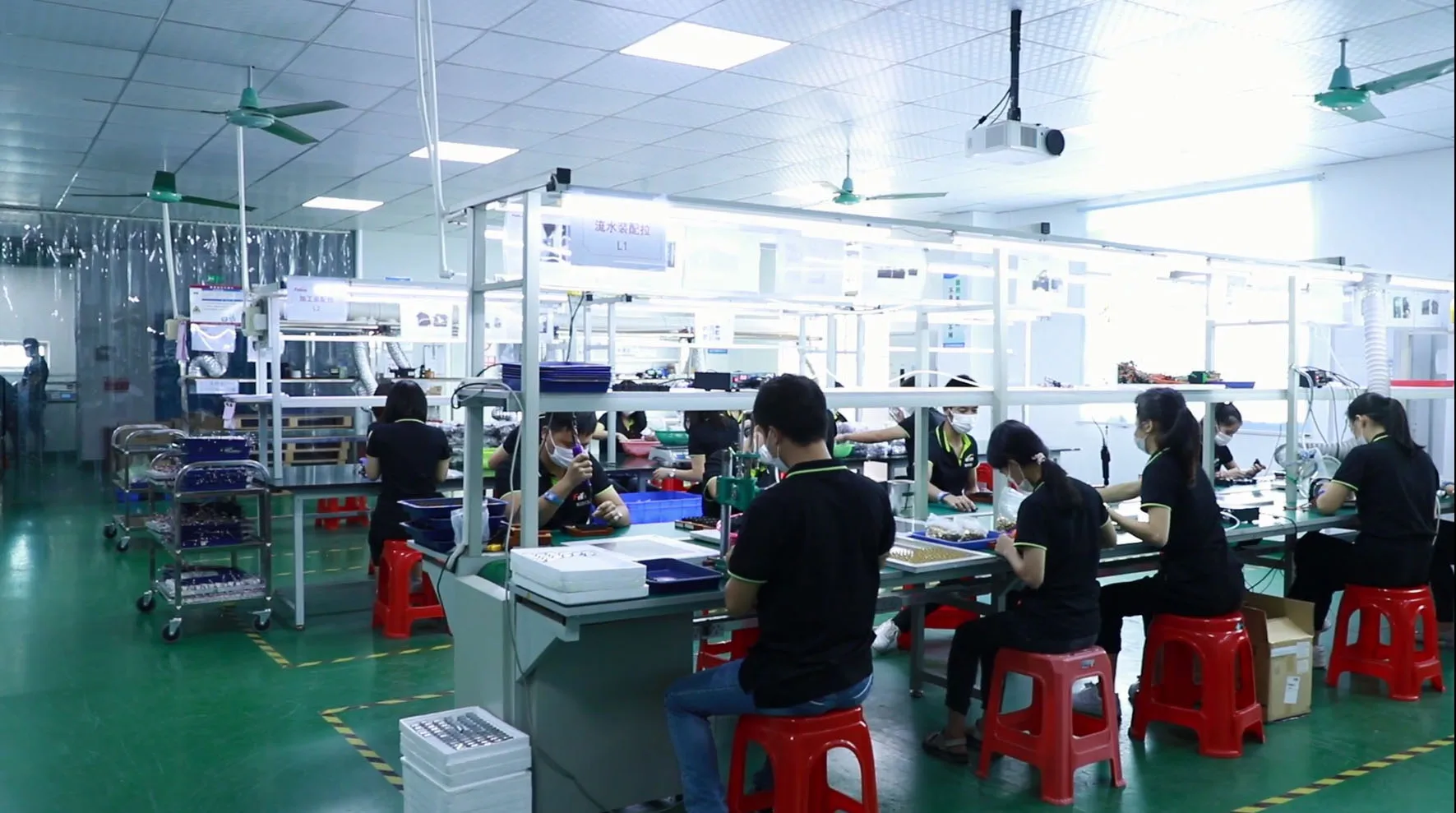

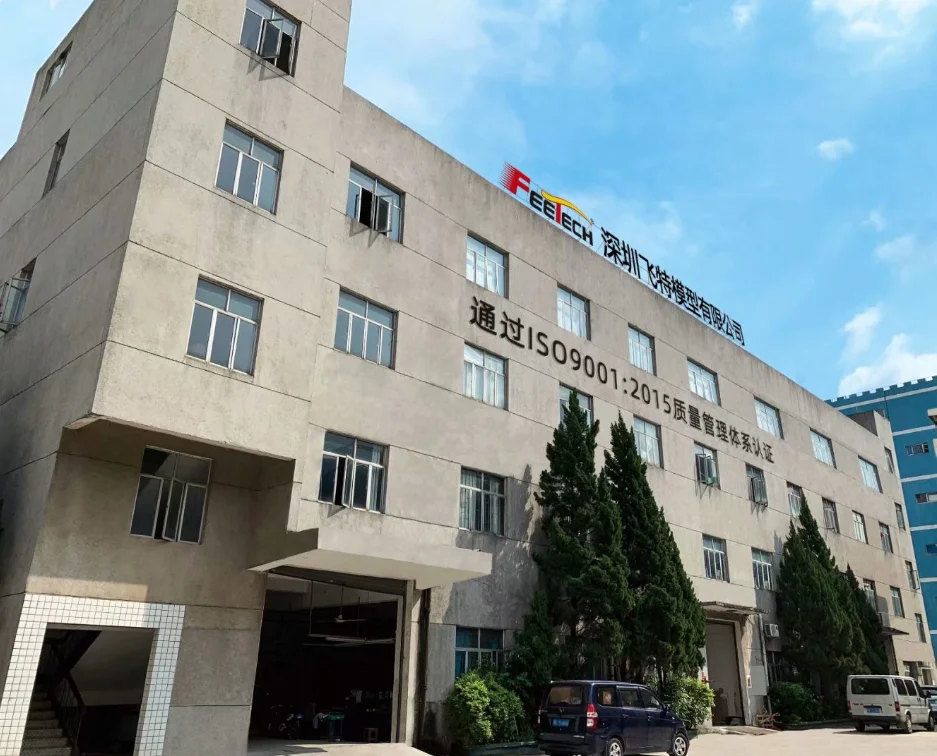

Shenzhen FEETECH RC Model Co., Ltd was established in 2011, We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company, Based on the realization of the servo transition curve constant acceleration technology and precision manufacturing technology, take hold in intelligent modular products which are more suitable for position control, The products are related to logistics, urban security, medical, education, AR industry, commercial robot and so on. It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners. Since its development, Feetech has established a deep cooperative relationship with famous universities, Chinese Academy of Sciences, University of Hong Kong , and major emerging enterprises.Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology. We look forward to working with you to build a better future together!
